Triflex ProTerra

A PMMA system designed to waterproof and surface walkways, balconies and terraces over occupied premises
Find out more


Triflex BBA and UKCA certification

Trilfex ProTerra is formulated for waterproofing walkways, balconies and terraces over occupied spaces. It will reliably waterproof and protect the structure as well as look good for years to come.

The BBA certified Triflex ProTerra delivers a combination of reliable, long term waterproofing, highly durable surfacing and attractive design. The system is ultra-fast curing and cold liquid applied, allowing installation to be completed quickly, without the use of hot works, and with minimal impact on users.

With 4 system variants, over 50 standard colours and bespoke colours on request, the system can be tailored to the project. And for a truly unique finish, a range of stencils and motifs are available with Triflex Creative Design.

System highlights

Crack bridging icon 99 x 99

Dynamic crack bridging, fully reinforced, cold applied system

Triflex lead from the front. Featuring unique resins with enhanced elastomeric properties and high tensile strength fleece reinforcement, we deliver a totally waterproof solution that can accommodate movement and cracking within the structure. There is no risk from hot works during installation as all Triflex materials are applied in a totally cold liquid form, curing to create a waterproofing membrane solution that lasts.

Rapid installation fast curing icon 99 x 99

Fast curing with rapid installation

Rapid curing and easy to install, Triflex allows buildings to remain occupied during installation, limiting access restrictions and unnecessary disruptions to everyday life. Installation can be carried out all year round, and the majority of system variants still cure quickly at temperatures down to 0°C.

Save money icon 99 x 99

High levels of protection with a low lifecycle cost

The system performance is unaffected by ponding water and the system is resistant to chlorides (salts), carbon dioxide ingress, and approved de-icing and cleaning products.

The heaviest duty variant, Quartz Design with large grain quartz offers a robust solution for highly trafficked applications including local authority access walkways and permanent pedestrian traffic routes. With proven, long term performance Triflex ProTerra offers best value with a low lifecycle cost.

Asphalt overlay icon 99 x 99

Asphalt overlay

Many balconies, walkways and terraces have historically been waterproofed using asphalt which over time will fail. Triflex has more than 30 years’ experience of asphalt overlay in the UK, Triflex ProTerra is the ideal solution for directly overlaying failing asphalt to trafficked areas. In fact, whatever the substrate, we can provide a quick, easy and reliable overlay solution.

Environmental safety icon 99 x 99

Safety and environmental

The solvent and isocyanate free resin technology has been assessed under BREEAM principles and can contribute to A+ ratings. The levels of skid resistance of a number of the finish variants make these particularly suitable for high risk, frequently trafficked areas.

Colour-Card icon 99 x 99

Maximum design options

With 4 system variants offering different textures and surface finishes, combined with over 50 standard colours the system can be tailored to meet aesthetic and project needs.


Application areas

  • External walkways, balconies, terraces, pedestrian bridges and other pedestrian trafficked areas over occupied premises
  • High risk areas subject to significant levels of structural movement and cracking

Compatible substrates

  • Asphalt and polymer modified asphalt
  • Concrete, concrete repair materials and screeds
  • Existing membranes
  • Steel
  • Structural plastics
  • Timber

Suitable constructions

  • Cast in situ concrete
  • Permanent formwork with in situ concrete
  • Precast concrete planks with or without structural topping
  • Precast double tee units with or without structural topping
  • Steel / galvanised steel / structural plastic / timber constructions
  • Insulated / warm deck build-ups

System variants

Quartz Design

Quartz Design features a high quality, tough and durable anti-skid finish, with a choice of four quartz aggregate sizes providing a range of textures and over 50 standard colours. It is easy to see why this versatile finish is our most popular in the UK.
View technical details

Colour Design

Colour Design features a coloured surface dressing and a durable clear satin finish. With a choice of eight distinct colour mixes, this finish creates an attractive low maintenance solution to enhance your outdoor space.
View technical details

Chips Design

Chips Design features a low maintenance, durable coloured finish with decorative anti-slip chips. With a range of over 50 standard colours, there are countless possibilities available, enabling you to create a tailored solution for your project.
View technical details

Stone Design

Stone Design is available with 6 variants of Italian marble embedded in a UV-resistant, non-yellowing resin. The Italian marble gives an exclusive and varied appearance in a range of natural colours.
View technical details

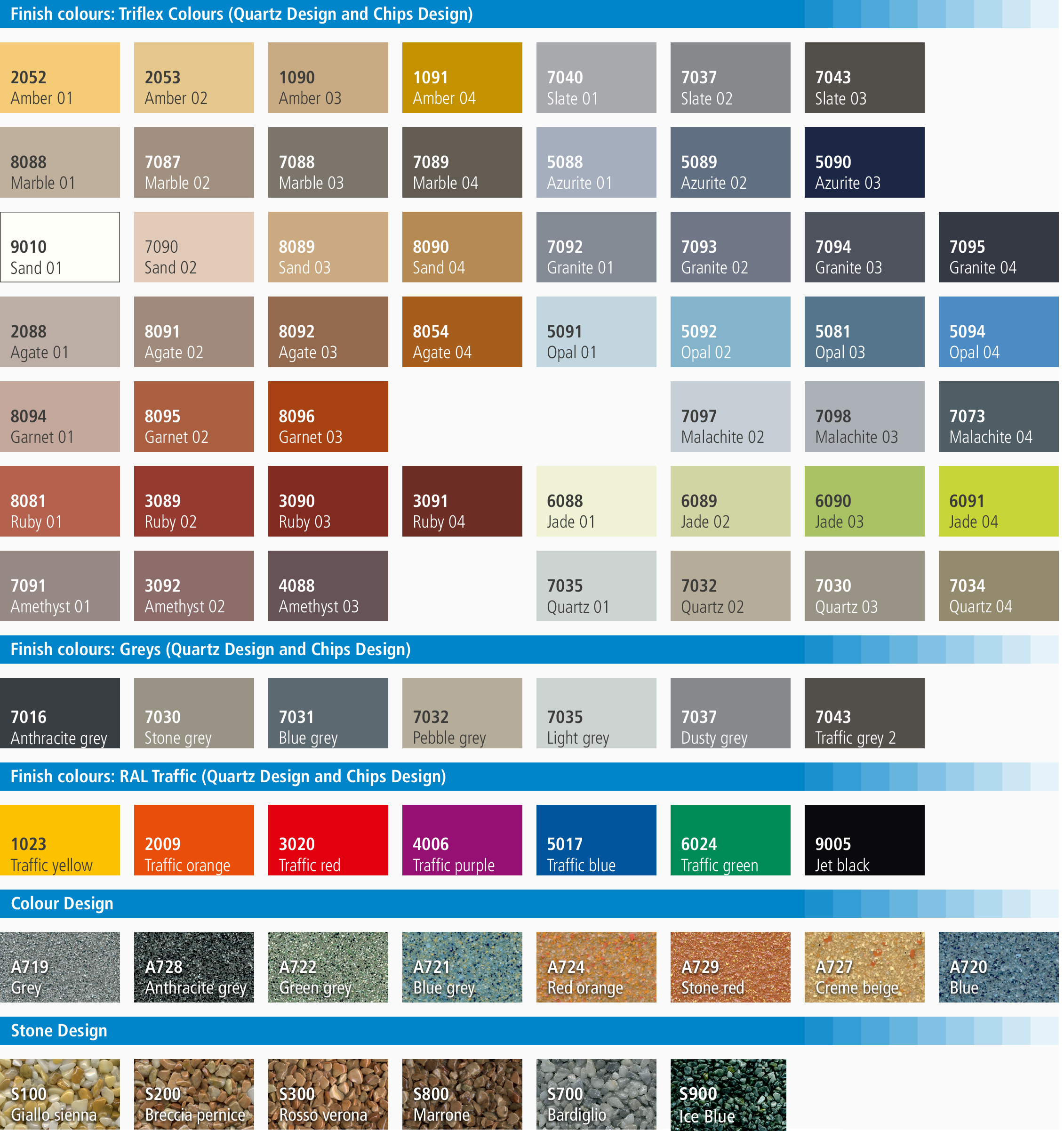

Triflex ProTerra and Triflex ProTerra colour card

Finish options

Triflex ProTerra is available with a wide range of finish options including Quartz Design, Colour Design, Chips Design and Stone Design and over 50 finish colours. The system can be tailored to meet aesthetic and project needs with special colours being produced to order.

For full details on the range of colours and finish options download the Triflex ProTerra colour card below.

Request a sample
Colour card

Require an on-site survey or quote?

All installations are carried out by our network of Triflex Authorised Contracting Partners. If you have a project we can provide a free no obligation on-site survey and can put you in touch with local Triflex contractors in your area that will be able to provide you with a quote.

To organise your free on-site survey you can either complete our project enquiry form or contact your local Business Development Manager, who will be more than happy to discuss your requirements.

Triflex Authorised Contracting Partners can place orders by calling 01785 819119 or emailing

Project enquiry

Creative Design

Create your very own personalised design for your balcony or terrace with Triflex Creative Design! At the heart of the system is a self-adhesive sheet which once removed reveals your surface design. From classic tile patterns in various formats through to company and club logos or names, standard and bespoke designs are available.

Triflex Creative Design can be used with the Triflex MicroChips and Triflex Colour Design finish variants, so you have a multitude of creative options for creating your bespoke walkway, balcony or terrace.

Creative Design
Find out more


Triflex updated certification

Fully certified to the highest UK and European standards and classifications, including:

BBA certified

  • Durability: Under normal service conditions the system will have a service life of at least 15 years

UKTA certified

ETAG 005 certified (reinforced waterproofing membrane)

  • 25 year expected working life

Fire performance:

  • EN ISO-11925-2
  • EN ISO-9239-1
  • EN 13501-1
  • EN 13501-5: Class BROOF (t4)
  • BS 476-3 (EXT.F.AA)

Root and rhizome resistant (reinforced waterproofing membrane - Triflex ProTerra):

  • FLL Certified: Root and rhizome resistant

NHBC accepted

Manufacturer certification

  • ISO 9001 Quality Management
  • ISO 14001 Environmental Management
  • ISO 50001 Energy Management
